The Master Multimeter Guide: How to Check Any Alternator, Wiring, and Diodes
By James H. Sterling

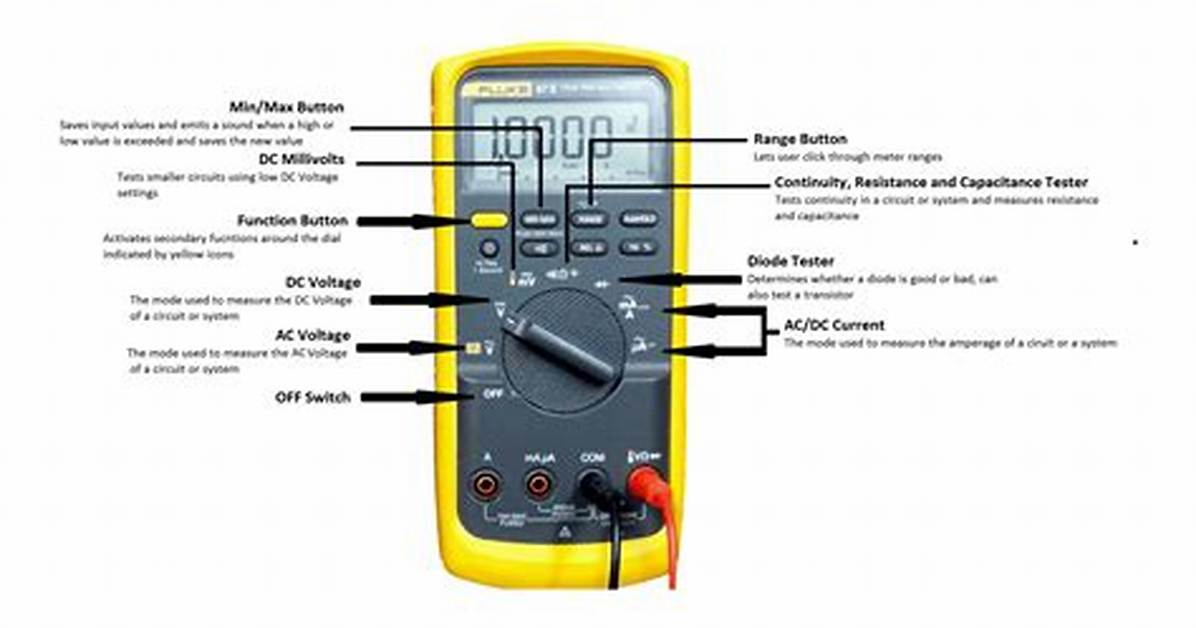

An alternator might produce sufficient current at zero-load idle while collapsing under actual driving demands. To check internal field coil strength and regulator response, initiate a comprehensive electrical load test. Leave the engine idling and switch on your vehicle's hungriest power draws: high-beam headlights, cabin blower fan on maximum speed, rear window defogger grid, and heated seats.
Direct an assistant to hold engine speed steadily at 2,000 RPM while you hold the meter probes against the battery posts. The added mechanical engine speed allows the rotor to spin fast enough to meet maximum amperage output ratings. Read the multimeter screen carefully.
| Operating Condition | Target Multimeter Reading | System Diagnostic Status |
|---|---|---|
| Engine Off (Resting, Cold) | 12.60, 12.80 V DC | Optimal battery capacity; adequate base for diagnostic testing. |
| Engine Idling (No Load) | 14.20, 14.70 V DC | Regulator active; properly replenishing starter motor amp draw. |
| 2,000 RPM (High Load) | 13.60, 14.40 V DC | Healthy continuous charging under realistic electrical demand. |
| 2,000 RPM (Defective Load) | Under 13.20 V DC | Insufficient generation; battery is discharging while driving. |
| Engine Running (AC Ripple Test) | Under 0.050 V AC (50 mV) | Rectifier bridge intact; alternating current successfully converted. |
If the circuit slumps below 13.5 volts under electrical strain, the alternator cannot maintain systemic balance. The vehicle will pull reserve power directly from the battery cells. Drive twenty miles in this state with your air conditioning and wipers running, and your engine will stall the moment you hit stop-and-go traffic.
